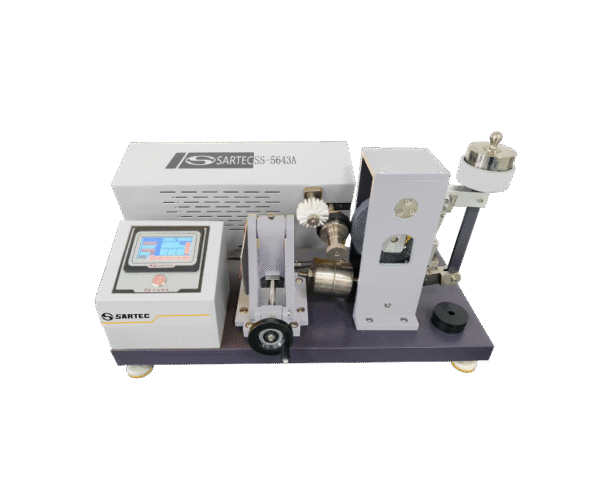

Akron Abrasion Tester: Precision Engineering for Rubber Wear Resistance Evaluation
The Akron Abrasion Tester is a specialized instrument engineered to evaluate the abrasion resistance of vulcanized rubber and elastic materials. Employing a standardized grinding wheel, the tester measures the volumetric wear of specimens under controlled frictional conditions, providing critical data for material performance assessment. Equipped with programmable revolution settings, the system automatically terminates testing upon reaching the 预设值，ensuring repeatable and reliable results.
This tester complies with internationally recognized standards, ensuring global applicability:
- JIS K6264: Japanese Industrial Standard for rubber abrasion testing
- BS 903: British Standard for rubber physical testing methods
- GB/T 1689: Chinese National Standard for rubber abrasion resistance
- CN 734: Specific compliance with Chinese industrial requirements
Premium Engineering Design
Crafted with meticulous attention to detail, the tester integrates advanced manufacturing processes with ergonomic design principles. Its robust construction ensures durability in demanding laboratory environments, while innovative aesthetics enhance operational efficiency and user comfort.
Intelligent Control System
Featuring a PLC+HMI interface with a large-color LCD touchscreen, the system offers intuitive navigation and real-time monitoring. Users can effortlessly configure test parameters, review historical data, and generate comprehensive reports with minimal training.
Flexible Shutdown Modes
The tester supports multiple termination criteria, including:
- Revolution Count: Precise control over abrasion cycles (0–99,999,999)
- Time-Based: Duration-specific testing for extended wear analysis
- Distance Measurement: Evaluation based on linear kilometers traversed
Data Protection Mechanism
An automatic memory function safeguards test progress during power interruptions, preserving critical data and allowing seamless resumption of operations. This feature minimizes downtime and ensures data integrity in mission-critical applications.
Adjustable Test Parameters
- Abrasion Angle: Customizable from 0–35°, enabling multi-axis wear simulation
- Digital Controls: Precise settings for revolutions, time, and distance with auto-stop functionality
- Load Optimization: Configurable weights to simulate real-world pressure conditions
Pre-Grinding Functionality
A dedicated pre-grinding interface streamlines specimen preparation, standardizing surface conditions for accurate baseline measurements. This feature reduces variability and enhances the reproducibility of test results.
| Parameter |
Specifications |
| Grinding Wheel |
Φ150×38mm, 36# grit, speed 34±1 r/min |
| Specimen Shaft Speed |
250±5 r/min or 76±2 r/min (dual-mode) |
| Counter |
LCD display, 0–99,999,999 cycles |
| Power Supply |
AC220V 50HZ 3A |
| Dimensions |
60×49×43.5 cm |
| Weight |
Approx. 60 kg |
| Specimen Tilt Angle |
0–35° adjustable |
| Load Weight |
2.6 lb (1,700g) |
| Balance Hammer |
2.5 kg |
The Akron Abrasion Tester is indispensable for quality control and research & development across industries, including:
- Tire Manufacturing: Evaluating tread compound durability
- Automotive Components: Testing rubber seals and gaskets
- Footwear: Assessing sole abrasion resistance
- Industrial Rubber Products: Conveyor belts, hoses, and gaskets
- Aerospace: Validating materials for extreme environments
Conclusion
Engineered for precision, reliability, and versatility, the Akron Abrasion Tester delivers comprehensive abrasion resistance data for materials development and quality assurance. Its adherence to global standards, combined with advanced features, makes it an essential tool for laboratories and manufacturers demanding accurate, repeatable results.
