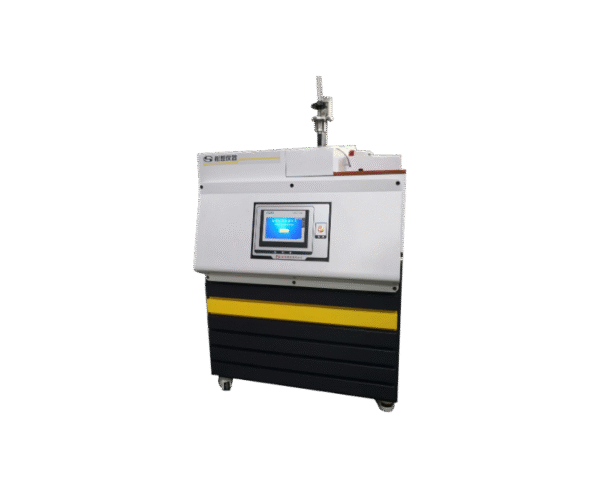

Compression Cold Resistance Coefficient Testing Machine: Precision Evaluation of Rubber Resilience in Extreme Cold
The Compression Cold Resistance Coefficient Testing Machine is a specialized instrument engineered to assess the cold resistance of rubber and similar materials by measuring their recovery deformation after exposure to cryogenic freezing. In industries where rubber components operate in low-temperature environments—such as automotive (door seals, O-rings), aerospace (fuel line gaskets), and industrial machinery (hydraulic seals)—understanding how materials retain elasticity after compression and freezing is critical for ensuring long-term performance. This machine simulates these harsh conditions, providing quantitative data on the compression cold resistance coefficient, a key metric for validating material formulations and quality control.
The testing process is designed to replicate real-world cold stress cycles:
- Specimen Preparation: Rubber specimens are cut to standardized dimensions and placed in SUS304 stainless steel compression fixtures.
- Cold Exposure: The specimens are subjected to a controlled low-temperature environment (created using compressor refrigeration with ethanol as the cooling medium, provided by the user) for a specified period.
- Compression Application: A precise load (1.960±0.098N, or 200±10g) is applied to compress the specimens during freezing, mimicking the pressure rubber components endure in assembled products.
- Recovery Measurement: After freezing, the machine measures the specimens’ recovery deformation using a high-precision LVDT displacement sensor. The system then automatically calculates the compression cold resistance coefficient, which indicates the material’s ability to return to its original shape after cold-induced compression.
This method ensures that results reflect how rubber performs in practical scenarios, from winter automotive use to cold-storage equipment.
The machine adheres to strict industry standards, ensuring its data is credible and compliant with global requirements:
- GB 6034: A Chinese national standard specifying methods for testing rubber’s cold resistance, critical for domestic manufacturing compliance.
- HG/T 3866: A Chinese industrial standard focusing on rubber seals for automotive applications, emphasizing cold resistance performance.
Compliance with these standards guarantees that test results are valid for regulatory submissions, product certifications, and quality audits, making the machine indispensable for manufacturers targeting both domestic and export markets.
Equipped with a large-color LCD touchscreen, the machine integrates all operational functions into a user-friendly interface. Operators can set parameters such as freezing temperature, exposure time, and compression load with ease, while the system provides real-time displays of temperature, elapsed time, and deformation data. Program-based automation allows for one-key testing, reducing human error and ensuring consistent protocol execution—even for complex multi-step sequences. This intuitive design minimizes training time, making the machine accessible to both experienced technicians and new users.
A high-precision PID (Proportional-Integral-Derivative) temperature control module regulates the cryogenic environment with exceptional stability. The system maintains temperatures within the range of RT (room temperature) to -70.0°C, with a resolution of 0.1°C, ensuring precise replication of target cold conditions. Whether testing at -20°C (simulating winter climates) or -70°C (mimicking extreme cold environments), the module minimizes fluctuations, preventing temperature-induced variability in test results.
The machine features a French Taikang two-stage fully enclosed air-cooled compressor, designed for rapid, energy-efficient cooling. It uses eco-friendly refrigerants (R404A and R23) in an advanced multi-loop system, achieving -70°C quickly while operating at low noise levels. This refrigeration technology balances performance and sustainability, making it suitable for laboratories and production facilities focused on both accuracy and environmental responsibility.
An electric motor-driven stirring system, paired with fans, circulates the ethanol cooling medium in the test chamber, eliminating temperature gradients. This ensures that all specimens—whether in a single batch or across multiple tests—experience identical cold conditions, preventing uneven freezing that could skew recovery deformation measurements. The test chamber’s design (387×277×164 mm, with a 10L ethanol capacity) further enhances uniformity, accommodating multiple specimens without compromising thermal stability.
- Media Management: The test chamber includes a manual valve discharge port, simplifying the addition and removal of ethanol. This feature reduces downtime between tests and minimizes spillage risks, enhancing workflow efficiency.
- Durable Construction: The compression fixtures are crafted from SUS304 stainless steel, resisting corrosion from ethanol and ensuring long-term accuracy. The machine’s body is built to withstand continuous use in industrial environments, with robust components that minimize maintenance needs.
- Over-Current Protection: Shuts down the system if electrical current exceeds safe levels, preventing damage to the compressor and control module.
- Temperature Over-Limit Protection: Activates if the chamber temperature falls outside the set range, protecting specimens from unintended extreme cold.
- High/Low Voltage Protection: Stabilizes operation during power fluctuations, ensuring consistent performance even in regions with unreliable electrical supply.
The Compression Cold Resistance Coefficient Testing Machine is critical for evaluating rubber materials in industries where cold resilience is essential:
- Automotive Manufacturing: Testing door seals, window gaskets, and O-rings to ensure they remain flexible and effective in freezing temperatures.
- Aerospace & Defense: Evaluating fuel line seals and hydraulic components, which must withstand extreme cold at high altitudes.
- Industrial Machinery: Assessing rubber seals in refrigeration equipment and cold-storage systems, ensuring they maintain a tight seal after repeated cold cycles.
- Rubber R&D: Supporting the development of new rubber formulations, helping researchers optimize additives to enhance cold resistance.
The Compression Cold Resistance Coefficient Testing Machine combines advanced refrigeration technology, precision sensing, and user-centric design to deliver reliable data on rubber’s cold resilience. Its ability to simulate extreme cold conditions, paired with automated data processing and compliance with industry standards, makes it an essential tool for quality control and research. By quantifying the compression cold resistance coefficient, this machine empowers manufacturers to engineer rubber materials that perform reliably—even in the harshest low-temperature environments.
