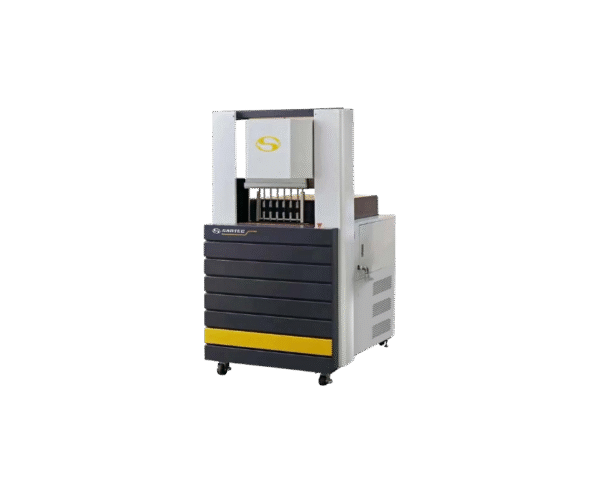

Gehman Torsion Testing Machine: Precision Analysis of Rubber Cold Resistance Through Low-Temperature Torsion Testing
The Gehman Torsion Testing Machine is a specialized instrument engineered to evaluate the low-temperature resistance of rubber materials by measuring their torsional behavior under controlled cold conditions. In industries where rubber components operate in freezing environments—such as automotive (door seals, windshield wipers), aerospace (fuel line gaskets), and industrial machinery (hydraulic seals)—the ability to maintain flexibility and resist stiffening is critical for performance and safety. This machine simulates these harsh conditions, quantifying torsional stiffness, torsional modulus, and corresponding temperatures to assess how rubber behaves in extreme cold, providing actionable data for material formulation, quality control, and compliance verification.
The tester follows a rigorous protocol aligned with GB/T 6036, focusing on torsional response at low temperatures:
- Specimen Preparation: Rubber specimens are cut to standardized dimensions (40.0mm ± 2.5mm in length, 3.0mm ± 0.2mm in width, 2.0mm ± 0.2mm in thickness) to ensure consistency.
- Cold Environment Setup: Specimens are placed in a refrigerated chamber, where temperature is adjusted to target levels (from room temperature down to -75℃, with the critical standard test point of -73℃ achievable via compressor refrigeration).
- Torsional Stress Application: A tempered spring steel torsion wire—with predefined torsion constants (0.7mN·m, 2.8mN·m, 11.2mN·m)—applies controlled torque to the specimens, inducing torsion angles ranging from 0° to 180°.
- Heating and Measurement: The chamber is heated in programmable increments (either 5℃ steps or a gradual 1℃/5min ramp), with the machine recording torsional stiffness and modulus at each temperature. This tracks how rubber transitions from stiff (cold) to flexible (warmer) states.
- Data Analysis: Specialized software automatically calculates key metrics, including the temperature at which torsional stiffness reaches critical thresholds, enabling quantitative assessment of cold resistance.
The machine strictly adheres to GB/T 6036, a Chinese national standard specifying methods for testing rubber’s low-temperature torsional properties. This compliance ensures that test results are valid for domestic quality control, regulatory submissions, and material certification—critical for manufacturers serving Chinese markets and seeking to meet industry-specific cold resistance requirements.
Supporting 3 or 6 specimen groups for parallel testing, the machine significantly enhances efficiency in high-throughput environments. This allows simultaneous evaluation of different rubber formulations, batch samples, or experimental variables (e.g., comparing a new additive against a standard blend). Parallel testing reduces overall testing time while ensuring consistent environmental conditions across groups, minimizing variability in results.
Specimens are standardized to strict dimensions (40.0±2.5mm × 3.0±0.2mm × 2.0±0.2mm), a critical detail because even minor variations in size can affect torsional response. The machine’s fixtures securely hold specimens without inducing extra stress, ensuring that measured stiffness and modulus reflect material properties rather than improper mounting. This precision is vital for replicating results across tests and laboratories.
- Extreme Cold Capability: The tester achieves temperatures from room temperature (RT) down to -75℃, with the compressor refrigeration system reliably reaching -73℃—the minimum test point required by GB/T 6036. This range covers the coldest conditions rubber is likely to encounter in real-world applications, from winter climates to refrigerated environments.
- Stable Regulation: Temperature control accuracy of ±1℃ ensures that each test point (e.g., -73℃, -60℃, -40℃) is maintained within tight tolerances. This stability prevents temperature fluctuations from distorting torsional measurements, a common source of error in low-temperature testing.
The machine offers flexible heating protocols to match testing needs:
- 5℃ Increments: Ideal for rapid screening, with each temperature step held for approximately 5 minutes to allow specimens to reach thermal equilibrium.
- 1℃/5min Ramping: A slower, more gradual heating rate for detailed analysis of the transition from cold stiffness to warmth-induced flexibility.
This programmability ensures compatibility with diverse testing objectives, from routine quality checks to in-depth material research.
- Torsion Angle Sensing: The machine measures angles from 0° to 180° with a resolution of 0.01°, capturing even subtle changes in torsional deformation. This precision is essential for detecting the exact temperature at which rubber begins to soften.
- Calibrated Torsion Wires: Tempered spring steel wires (65mm ± 8mm in length) with specified torsion constants (0.7mN·m, 2.8mN·m, 11.2mN·m) ensure that torque application is accurate and repeatable. Different wires can be swapped to accommodate rubber materials with varying stiffness, from soft elastomers to rigid compounds.
Dedicated computer software automates the entire testing process: from setting temperature profiles and torsion parameters to recording data and generating reports. The software visualizes torsional angle vs. temperature curves, calculates torsional modulus, and identifies critical transition temperatures—streamlining analysis and reducing manual effort. This integration of hardware and software ensures consistency, even for complex multi-step tests.
The Gehman Torsion Testing Machine is indispensable for rubber materials in industries where cold resistance directly impacts performance:
- Automotive: Testing door seals, window gaskets, and weatherstripping to ensure they remain flexible in freezing temperatures, preventing leaks or cracking.
- Aerospace: Evaluating rubber components in aircraft, such as O-rings in fuel systems, which must withstand extreme cold at high altitudes.
- Industrial Machinery: Assessing rubber hoses and seals used in refrigeration units or cold-storage facilities, ensuring they maintain functionality in sub-zero conditions.
- Rubber R&D: Supporting the development of new formulations by measuring how additives (e.g., plasticizers, antioxidants) affect low-temperature torsional properties.
The Gehman Torsion Testing Machine combines advanced refrigeration, precision torsional measurement, and automated software to deliver reliable data on rubber’s cold resistance. Its adherence to GB/T 6036, multi-group testing capability, and wide temperature range make it an essential tool for quality control and research. By quantifying how rubber stiffens and flexes under torsional stress in cold environments, this tester empowers manufacturers to engineer materials that perform reliably—even in the harshest low-temperature conditions.
