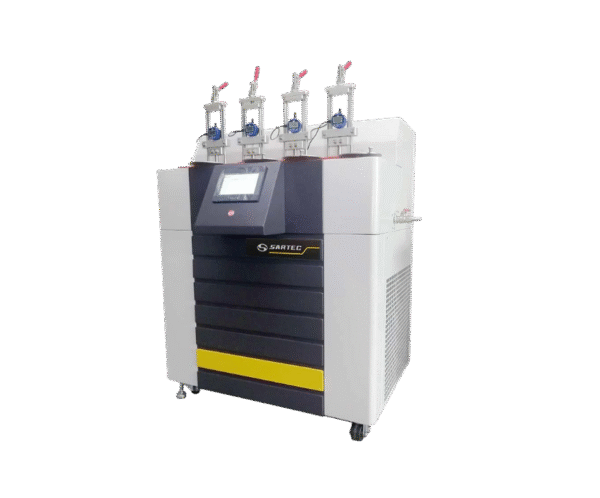

Low-Temperature Compression Set Testing Machine: Precision Analysis of Cold Resistance Through Compression Set Evaluation
The Low-Temperature Compression Set Testing Machine is a specialized instrument designed to assess the compression set of rubber and plastic materials under low-temperature conditions. Compression set— the permanent deformation remaining after a material is compressed and then released— is a critical metric for evaluating how well rubber retains its elasticity in cold environments. In industries such as automotive (gaskets, O-rings), aerospace (seals), and industrial machinery (hydraulic components), rubber parts often endure prolonged compression in freezing temperatures; a high compression set indicates the material will fail to seal or cushion effectively over time. This machine simulates these conditions, providing quantitative data to validate material formulations, ensure compliance with standards, and optimize product durability.
The tester follows a rigorous protocol to measure compression set under cold stress:
- Specimen Preparation: Rubber specimens are cut to standardized dimensions and placed between planar compression plates.
- Controlled Compression: The machine compresses specimens to a specified ratio (typically 25% or 50% of their original thickness) using a precision screw mechanism, mimicking the pressure exerted on seals in assembled products.
- Low-Temperature Exposure: Compressed specimens are conditioned in a cryogenic chamber (using ethanol as the cooling medium, provided by the user) at target temperatures (from room temperature down to -70℃) for a set period.
- Recovery Measurement: After conditioning, the compression is released, and specimens are allowed to recover. A high-precision LVDT sensor measures the remaining permanent deformation, calculating the compression set percentage.
This process replicates real-world scenarios—such as a rubber gasket compressed in a car engine bay during winter—ensuring results reflect actual performance.
The machine adheres to strict international standards, ensuring its data is credible and globally recognized:
- GB/T 7759.2-2014: A Chinese national standard specifying methods for testing rubber’s compression set at low temperatures, critical for domestic manufacturing compliance.
- ISO 815-2:2008: An international standard governing compression set tests for rubber under cold conditions, facilitating cross-border trade and research collaboration.
Compliance with these standards guarantees that test results are valid for regulatory submissions, product certifications, and quality audits, making the machine indispensable for manufacturers targeting both domestic and global markets.
Equipped with a large-color LCD touchscreen, the machine integrates all operational functions into an intuitive interface. Operators can program parameters—such as compression ratio, temperature setpoints, and conditioning time—with ease. The system provides real-time displays of temperature, elapsed time, and compression status, while program-based automation enables one-key testing. This design minimizes human error, ensures consistent protocol execution, and reduces training time, making the machine accessible to both experienced technicians and new users.
A high-precision PID (Proportional-Integral-Derivative) temperature control module maintains stable thermal conditions within the test chamber. The system achieves temperatures from room temperature (RT) down to -70℃, with a resolution of 0.1℃ and control accuracy of ±0.5℃. This precision is critical because even minor temperature fluctuations can alter rubber’s molecular structure, skewing compression set results. The chamber also boasts exceptional temperature uniformity (±0.1℃), ensuring all 4 specimen groups (customizable to more) experience identical cold conditions—eliminating variability between parallel tests.
- Powerful Cooling: The machine features a French Taikang two-stage air-cooled compressor, using eco-friendly refrigerants (R404A and R23) in a low-noise, energy-saving multi-loop system. This setup enables rapid cooling to -70℃, reducing wait times between tests and enhancing workflow efficiency.
- Flexible Heating Profiles: For tests requiring temperature ramps, the machine offers two modes: 5℃ increments (ideal for rapid screening) or 1℃/5min ramping (for detailed analysis). Each step allows specimens to reach thermal equilibrium, ensuring compression set measurements reflect material behavior at specific temperatures.
An LVDT (Linear Variable Differential Transformer) displacement sensor with 0.001mm resolution precisely measures specimen thickness before compression, during conditioning, and after recovery. This sensor captures even minute permanent deformation, enabling accurate calculation of compression set percentage (e.g., “20% set” indicates the specimen retained 20% of its compressed thickness after release). The sensor’s reliability is critical for distinguishing between high-performance rubber (low set) and substandard materials (high set).
- Media Management: The test chamber includes a manual valve discharge port, simplifying the addition and removal of ethanol—reducing downtime and minimizing spillage risks.
- Ergonomic Fixtures: Planar compression plates ensure uniform pressure distribution across specimens, while adjustable compression ratios accommodate different material types (e.g., soft elastomers vs. rigid rubber).
- Electrical Safeguards: Over-current, high/low voltage, and leakage protection prevent damage to the compressor and control system during power fluctuations.
- Temperature Over-Limit Protection: Shuts down the refrigeration system if temperatures exceed safe ranges, protecting both specimens and equipment.
- Emergency Features: A visible emergency stop button allows for instant shutdown, enhancing operator safety during unexpected issues.
The machine is indispensable for materials in industries where cold resistance directly impacts performance:
- Automotive: Testing door seals, engine gaskets, and O-rings to ensure they maintain a tight seal after prolonged compression in freezing temperatures.
- Aerospace: Evaluating rubber components in aircraft fuel systems, which must resist compression set at extreme altitudes.
- Industrial Machinery: Assessing seals in refrigeration units and cold-storage equipment, ensuring they retain elasticity to prevent leaks.
- Rubber R&D: Supporting the development of new formulations by measuring how additives (e.g., plasticizers) reduce compression set in cold conditions.
The Rubber Low-Temperature Static Compression Testing Machine combines advanced refrigeration, precision sensing, and automated control to deliver reliable data on compression set. Its adherence to GB/T 7759.2-2014 and ISO 815-2:2008, paired with features like high-precision temperature control and multi-group testing, makes it an essential tool for quality control and research. By quantifying how rubber resists permanent deformation in cold environments, this machine empowers manufacturers to engineer materials that perform reliably—even in the harshest low-temperature conditions.
