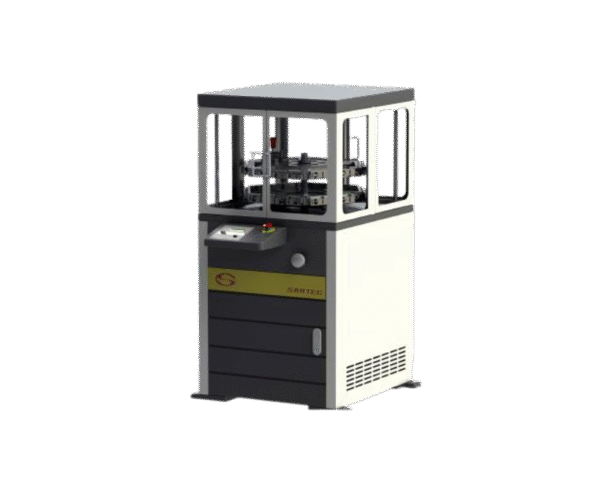

Multi-position Rubber Flexure Testing Machine: Precision Fatigue Analysis for Rubber Materials
The Multi-position Rubber Flexure Testing Machine is a specialized instrument engineered for fatigue testing of rubber and related elastic materials. Its core functionality involves securing specimens in clamps, subjecting them to continuous bending fatigue cycles, and evaluating the degree of cracking or degradation over time. This process allows manufacturers and researchers to assess or compare material durability, ensuring products meet performance standards in real-world applications where repeated bending is common.
The machine adheres to globally recognized testing protocols, guaranteeing accuracy and compatibility with international quality benchmarks:
- ASTM D813: American Society for Testing and Materials standard for rubber property testing under flexural fatigue, widely adopted in North American industries.
- GB/T 13934: Chinese National Standard specifying methods for rubber flexing fatigue testing, essential for domestic manufacturing compliance.
- HG 2873: Chinese chemical industry standard focusing on rubber products’ fatigue resistance, particularly relevant for industrial rubber components.
Compliance with these standards ensures that test results are valid, comparable, and trusted across global supply chains, making the machine a valuable asset for both local and international operations.
Multi-station Design
Equipped with 12, 24, or 48 optional clamp groups, the machine enables parallel testing of multiple specimens simultaneously. This high-throughput capability significantly reduces testing time, making it ideal for batch quality control checks or comparative studies between different material formulations. Each clamp group operates independently, ensuring uniform bending conditions across all specimens and eliminating variability that could skew results.
Precision-Controlled Bending Parameters
The machine delivers standardized fatigue evaluation through meticulously regulated bending parameters. From stroke length to cycle speed, every variable is calibrated to meet ASTM, GB, and HG standards, ensuring consistency between tests. This precision is critical for identifying subtle differences in material performance—for example, distinguishing between rubber compounds used in high-stress applications like tire sidewalls versus low-impact products like gaskets.
LCD Counter for Accurate Cycle Management
An integrated LCD counter displays cycle counts from 0 to 999,999, with automatic test termination when the preset number of cycles is reached. This feature eliminates manual monitoring, reducing human error and ensuring tests end exactly as programmed. Operators can easily set target cycles via a user-friendly interface, and the counter’s high visibility allows for quick progress checks during long-duration tests.
Robust Construction for Reliability
Built with industrial-grade materials, the machine is designed to withstand continuous operation in demanding laboratory or production environments. Its sturdy frame minimizes vibration during high-speed cycling, preserving the integrity of bending motions and ensuring consistent specimen treatment. This durability translates to long-term reliability, even with frequent use.
| Parameter |
Specifications |
| Clamp Groups |
12, 24, or 48 (optional) |
| Gripper Spacing |
75mm |
| Stroke |
57mm |
| Test Speed |
300±10 cycles per minute (CPM) |
| Counter |
LCD display, 0~999,999 cycles |
| Dimensions |
56×41×68cm (W×D×H) |
| Weight |
Approximately 108kg |
| Power Supply |
AC220V, 50Hz |
These parameters reflect the machine’s engineering precision. The fixed gripper spacing (75mm) and stroke (57mm) ensure compliance with standard test geometries, while the 300±10 CPM speed simulates realistic bending frequencies for most rubber applications. The compact dimensions (56×41×68cm) make it suitable for laboratory workspaces, while the 108kg weight underscores its stability during operation.
The Multi-position Rubber Flexure Testing Machine is indispensable across industries reliant on durable rubber materials:
- Tire Manufacturing: Testing tire sidewalls and tread compounds for resistance to flex fatigue, a key factor in preventing premature failure.
- Automotive Components: Evaluating rubber seals, hoses, and gaskets that endure repeated bending in engine or chassis systems.
- Industrial Rubber Products: Assessing conveyor belts, O-rings, and vibration dampeners used in machinery with constant motion.
- Footwear: Analyzing shoe soles and rubber components to ensure they withstand repeated flexing during wear.
- Aerospace: Validating rubber materials in aircraft seals and gaskets, where fatigue resistance is critical for safety.
Combining high throughput with precision control, the Multi-position Rubber Flexure Testing Machine is a cornerstone of rubber durability testing. Its adherence to global standards, multi-station design, and accurate cycle management make it essential for quality assurance, research and development, and compliance testing. Whether used to optimize material formulations or verify product reliability, this machine delivers the consistent, actionable data needed to produce robust rubber products.
