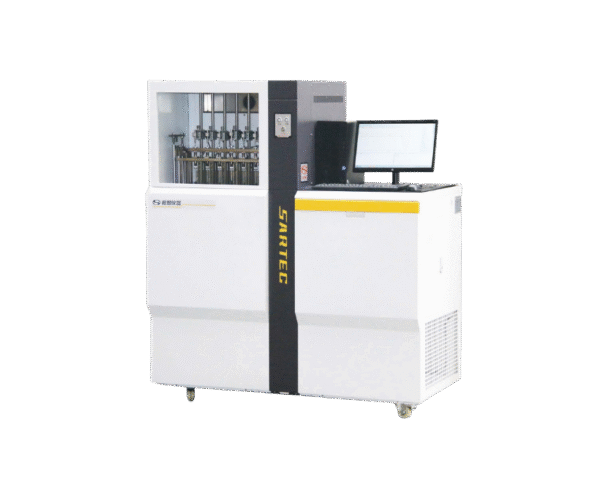

Vicat Testing Machine: Precision Analysis of Plastic Thermal Resistance and Softening Behavior
The Vicat Testing Machine is a specialized instrument designed to evaluate the heat resistance of plastic materials by measuring two critical thermal properties: Heat Distortion Temperature (HDT) and Vicat Softening Temperature. These metrics are essential for determining how plastics perform under elevated temperatures and mechanical stress—key considerations in industries such as automotive, electronics, and packaging, where components must withstand heat during use, manufacturing, or transportation. By simulating real-world conditions, the machine provides actionable data to validate material formulations, ensure compliance with industry standards, and optimize product design for thermal durability.
The machine operates on a controlled protocol to assess plastic behavior under heat and load:
- ** specimen Preparation : Plastic specimens are shaped to standardized dimensions, ensuring consistency across tests.
2. Thermal Exposure : Specimens are immersed in a heating medium (methyl silicone oil), which is heated at a constant rate. Optional cooling (via tap water or a compressor) allows for temperature cycling if needed.
3. Load Application : A specified bending load is applied to the specimen, simulating mechanical stress encountered in real applications.
4. Data Capture**: When the specimen reaches a predefined deflection (for HDT) or the indenter penetrates a set depth (for Vicat), the machine automatically records the temperature. This temperature indicates the point at which the plastic begins to lose structural integrity under heat.
Specimen fixtures, crafted from low thermal expansion alloy steel, minimize deformation at high temperatures, ensuring measurements remain accurate even as the testing medium reaches 300℃.
The Vicat Testing Machine adheres to a comprehensive set of international standards, ensuring its results are globally recognized and comparable:
- ASTM-D1525, ASTM-D648: American standards for Vicat softening temperature and heat distortion temperature, respectively, widely used in North American manufacturing.
- DIN53460, DIN53461: German standards specifying methods for determining thermal properties of plastics, critical for European markets.
- ISO-306, ISO-75: International standards governing Vicat and HDT testing, facilitating cross-border trade and research collaboration.
Compliance with these standards guarantees that test data is reliable for regulatory submissions, material certifications, and quality control processes, making the machine indispensable for manufacturers operating in global supply chains.
The machine integrates computer-based automation with a user-friendly interface, streamlining operation and ensuring consistency. Operators can program test parameters (temperature rate, load, deflection thresholds) via software, which then controls heating, cooling, and data recording automatically. This computer-integrated design simplifies maintenance, reduces human error, and ensures stable performance—even during extended testing sessions. Real-time displays of temperature, load, and deformation allow for instant monitoring, while intuitive navigation minimizes training time for new users.
A full-automatic test mode enables “one-touch” operation: once parameters are set, the machine initiates heating, applies the load, monitors deformation, and records results without manual intervention. It automatically shuts down upon reaching the HDT or Vicat temperature, preventing over-testing and protecting both specimens and equipment. This automation is particularly valuable for high-throughput environments, such as production-line quality control labs, where efficiency and repeatability are paramount.
An LVDT (Linear Variable Differential Transformer) displacement sensor with 0.001mm resolution provides accurate measurement of indenter deformation. This high precision ensures that even minute deflections—critical for determining HDT and Vicat temperatures—are captured, eliminating guesswork and ensuring results align with strict standard requirements. The sensor’s digital display provides clear, real-time feedback, allowing operators to verify test progress at a glance.
An electrically driven automatic specimen rack simplifies loading and unloading, with adjustable positions to accommodate different specimen sizes. This feature reduces operator effort and ensures consistent specimen placement, which is vital for maintaining accuracy across multiple tests. Whether using 3 or 6 workstations (optional configurations), the rack system streamlines workflow, making the machine ideal for labs testing multiple material batches.
- Protected Connections: Power cords and connectors are encased in pressure-proof, waterproof corrugated tubes, with anti-dislodgement steel quick-connectors—preventing damage from oil spills or mechanical stress and ensuring safe operation in industrial environments.
- Heat-Resistant Components: Specimen fixtures are crafted from low thermal expansion alloy steel, minimizing deformation at high temperatures and preserving test accuracy even as the heating medium reaches 300℃.
The machine’s body is coated with DuPont powder via electrostatic spray, cured at 200℃ for exceptional durability. This treatment resists fading, corrosion, and chemical damage from the methyl silicone oil heating medium, ensuring a professional appearance and long service life—even with daily use in busy labs.
The Vicat Testing Machine is critical for evaluating plastic thermal performance across industries:
- Automotive: Testing plastic components (e.g., dashboards, engine covers) to ensure they resist deformation under engine heat.
- Electronics: Evaluating casing materials for devices (e.g., laptops, smartphones) to confirm they withstand heat from internal components.
- Packaging: Assessing plastic films and containers to ensure they maintain integrity during hot-fill processes or shipping in high-temperature climates.
- Aerospace: Validating high-performance plastics used in aircraft interiors, where temperature stability is critical for safety.
- Material R&D: Supporting the development of new plastic formulations by measuring how additives or polymers affect thermal resistance.
The Vicat Testing Machine combines advanced automation, precision sensing, and robust construction to deliver reliable data on plastic thermal properties. Its adherence to international standards (ASTM, ISO, DIN) ensures results are globally recognized, while features like one-touch testing, high-precision sensors, and multiple workstations enhance efficiency and accuracy. Whether used in quality control to verify batch consistency or in research to innovate new materials, this machine empowers industries to engineer plastics that perform reliably under the thermal stresses of real-world applications.
